New Diffs for the Brute
#1
New Diffs for the Brute
Wow what a day.....great progress though!! We tackled the assembly of the new rear housing. The day started off pretty slow(from foggy brain syndrome) but once we got on a rooll all went very smoothly.Thanks to xtremexj, t2c2 and crazyYj we have the new BT9XD semi float rear housing is all but done and axles can be ordered for it on Monday!!
These are the same diff housings that Bear TraX 4x4 Outfitters Inc. will be selling out of the new shop!!! :D

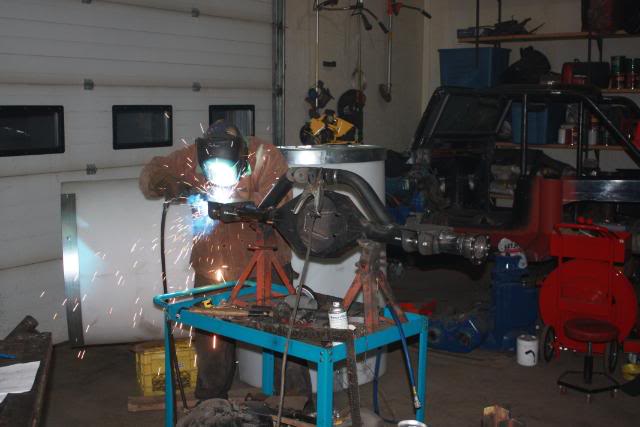

Some pics for ya
These are the same diff housings that Bear TraX 4x4 Outfitters Inc. will be selling out of the new shop!!! :D
Some pics for ya
#3
Re: New Diffs for the Brute
Ya they are gonna be tough!
Can't wait to release them to the market!!
Nope sorry we were to busy workin and weldin to think of that snapped a few as we went....will try maybe on the weekend, with running the shop my stuff is a weekend deal!!!!
Bear
Can't wait to release them to the market!!
Nope sorry we were to busy workin and weldin to think of that snapped a few as we went....will try maybe on the weekend, with running the shop my stuff is a weekend deal!!!!
Bear
#7
Re: New Diffs for the Brute
t2c1 and I tackled the front doff today and got alot done. The pinion angle was set at an initial 9 degrees and then the inner c's were welded on with 8 degrees of castor. This should allow a bit of wiggle room for future adjustment in both pinion and castor angles without sacrificing return to center ability at the wheel.
Tommorrow we will finish putting the suspension bracketry on the housing and measure up for front axle shafts.
Then on to the cosmetics with a healthy dose of grinding and painting.
Thanx T for all the help....
Here are a few pics from the day!!
[
Tommorrow we will finish putting the suspension bracketry on the housing and measure up for front axle shafts.
Then on to the cosmetics with a healthy dose of grinding and painting.
Thanx T for all the help....
Here are a few pics from the day!!
[
