2011 Jeep Wranger Trailer Wireing

Reply




Old 04-12-2011, 12:04 PM
  #1
Senior Member
Thread Starter

nicker22's Avatar

Join Date: Mar 2011
Location: Ontario
Posts: 148
Canada 2011 Jeep Wranger Trailer Wireing

can anyone confirm if the 2011 Jeep Wrangler's have a wire harness from the factory that you can just clip into? I was told there is a factory harness at the rear some where. I briefly had a look but coudln't find anything.

thanks
nicker22 is offline
Reply With Quote
Old 04-12-2011, 04:33 PM
  #2
Member

Jenna's Avatar

Join Date: Apr 2010
Location: Ajax, Ontario
Posts: 58
Default Re: 2011 Jeep Wranger Trailer Wireing

I think that might be only if you get the towing package... I got it so I have it?
Jenna is offline
Reply With Quote
Old 04-13-2011, 05:01 PM
  #3
Member

AHunter's Avatar

Join Date: Apr 2011
Location: Ontario, Canada
Posts: 46
Default Re: 2011 Jeep Wranger Trailer Wireing

Originally Posted by Jenna View Post
I think that might be only if you get the towing package... I got it so I have it?

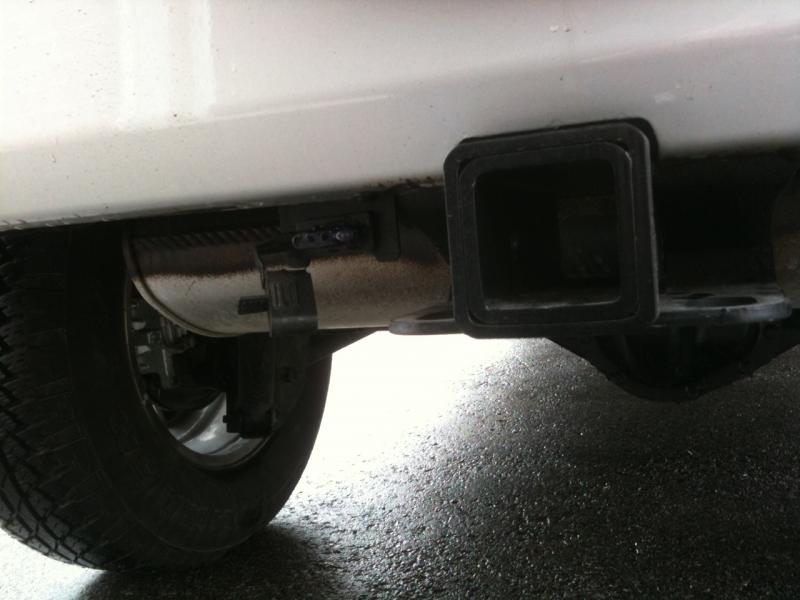

I agree with Jenna. I have the tow package so I also have the harness. I attached two pictures. Does this help?
Attached Thumbnails 2011 Jeep Wranger Trailer Wireing-photo.jpg   2011 Jeep Wranger Trailer Wireing-photo-2-.jpg
AHunter is offline
Reply With Quote
Old 04-14-2011, 09:29 AM
  #4
Senior Member
Thread Starter

nicker22's Avatar

Join Date: Mar 2011
Location: Ontario
Posts: 148
Default Re: 2011 Jeep Wranger Trailer Wireing

thanks. No I don't have the two package but somome said jeeps are mostly wired. what I mean is on my old vehicle I had to wired a power wire right from the battery to the back and tape into my rear tail lights on both sides. My understanding is jeeps have this pre wired and there is a connection somewhere underneth near the rear. I will have to crawl under there and have a peek.

thanks
nicker22 is offline
Reply With Quote
Old 04-14-2011, 03:17 PM
  #5
Senior Member

JTPhoto JK's Avatar

Join Date: Aug 2009
Location: Thunder Bay, ON
Posts: 552
Default Re: 2011 Jeep Wranger Trailer Wireing

Not pre wired, but the trailer kit from the dealer uses plugs that go between the two haves of the taillight plugs. No cutting required.
JTPhoto JK is offline
Reply With Quote
Old 04-14-2011, 09:03 PM
  #6
Senior Member
Thread Starter

nicker22's Avatar

Join Date: Mar 2011
Location: Ontario
Posts: 148
Default Re: 2011 Jeep Wranger Trailer Wireing

Originally Posted by JTPhoto JK View Post
Not pre wired, but the trailer kit from the dealer uses plugs that go between the two haves of the taillight plugs. No cutting required.
that would be good, so no need to run a power wire from the battery? that is the shitty part
nicker22 is offline
Reply With Quote
Old 04-14-2011, 09:37 PM
  #7
Senior Member

JTPhoto JK's Avatar

Join Date: Aug 2009
Location: Thunder Bay, ON
Posts: 552
Default Re: 2011 Jeep Wranger Trailer Wireing

Put one in my son's 07 sahara last fall. The only extra wire to deal with is a ground to the frame at the rear. All other wires are there in the rear harness.
JTPhoto JK is offline
Reply With Quote
Old 04-18-2011, 01:32 PM
  #8
Member

AHunter's Avatar

Join Date: Apr 2011
Location: Ontario, Canada
Posts: 46
Default Re: 2011 Jeep Wranger Trailer Wireing

I tried to follow the wire to see if it had a connection closer to the rear of the Jeep but no luck.

I installed a harness on a past vehicle I owned and all I needed to do was piggy back the harness wires and ground it to the frame.
AHunter is offline
Reply With Quote
Old 04-20-2011, 09:14 PM
  #9
Senior Member

JTPhoto JK's Avatar

Join Date: Aug 2009
Location: Thunder Bay, ON
Posts: 552
Default Re: 2011 Jeep Wranger Trailer Wireing

Originally Posted by AHunter View Post
I tried to follow the wire to see if it had a connection closer to the rear of the Jeep but no luck.

I installed a harness on a past vehicle I owned and all I needed to do was piggy back the harness wires and ground it to the frame.
The connection is behind the drivers side taillight. You must remove the taillight to get at the plug.
JTPhoto JK is offline
Reply With Quote
Old 04-24-2011, 12:48 AM
  #10
Senior Member

Join Date: Jul 2009
Location: Nelson B.C.
Posts: 133
Default Re: 2011 Jeep Wranger Trailer Wireing

Ya, buy a wiring harness for about $55. Remove the drivers side tail light, disconnect the wiring connector for it. Add in the new harness and reassemble taillight. I chose to remove the stupid floating foam plugs below both taillights, seal the openings with tape and aluminum flashing and then shoot in that foam-in-a can stuff. Don't use too much, especially around the fuel filler pipe breather. I built my own hitch receiver for $12, (Found factory one & took measurements) only because they wanted $250 for it at the dealer. Use the same bolts to mount it as those that hold on the hook - might have bought one more. Oh! polish all metal parts before assembly, then let it rust so you can't rub it off. Assemble and paint with rust-mort so it goes black, then paint with your choice of colours.
Chasmoe is offline
