West dana 03 front axle

does anyone know if the front axle from a 2001 zj will fit a 1998 zj , i know both are dana 30 with 373 ratio
bcbueller is offline   Reply With Quote
Old 06-20-2011, 03:58 PM   #2
Administrator
iTrader: (1)

Mr White's Avatar

Join Date: Feb 2008
Location: Quebec
Posts: 1,449
Default Re: dana 03 front axle

I would yes - are they both coil springs or leaf springs so you don't have a reprosition the spring seats but if you want a quick reply call Chrsyler and ask them. If "CrazyWJ242" see this post I am sure he will be able to give you a straight answer.
Mr White is offline   Reply With Quote
Old 06-20-2011, 04:00 PM   #3
Senior Member

Join Date: May 2010
Location: quebec
Posts: 631
Default Re: dana 03 front axle

2001 should be a wj. The steering arrangement and track bar are different. Some of them have a different bolt pattern also. You can make anything fit onto anything but I doubt this would be a direct bolt in.
oldfart is offline   Reply With Quote
Old 06-20-2011, 07:13 PM   #4
Moderator

CrazyWJ242's Avatar

Join Date: Feb 2009
Location: New Brunswick
Posts: 889
Default Re: dana 03 front axle

haha, yeah i've owned both ZJ's and WJ's... they are not drop in replacements with one another... but as mentioned you can make just about anything fit...

the main pieces that are different are the Knuckles... ZJ's attach the drag link to the inner tie rod, and steering stabilizer attaches to this aswell... WJ's use a totally different system... the drag link to the right knuckle, the tie rods are attached to one another... this is the preferred knuckle for offroaders as if you flip the ends, you gain a few inches of clearance, you can use a beefier inner tie rod...

Now i cant for the life of me remember if the inner C's are different sizes (this would affect the CV Joints that you would use... but of course you can make anything fit)

swaybar links are a bit different, and i think the trackbar and steering stabilizers are basically in the same locations... i never pulled a tape measure on these so i dont know, but their relatively in the same location... ZJ axle only bolts to the swaybar link on one side...

And if its a 2001 XJ... im not sure what axle it uses lol...
CrazyWJ242 is offline   Reply With Quote
Old 06-20-2011, 10:11 PM   #5
Junior Member
Thread Starter

Join Date: Jun 2011
Location: bc
Posts: 6
Default Re: dana 03 front axle

well that solves that . thanks for the insight . just if anyone wants there is one off a 2001 jeep grand cherokee on craigslist in langley bc
bcbueller is offline   Reply With Quote
Old 06-22-2011, 12:10 AM   #6
Senior Member

04WJGuy's Avatar

Join Date: Nov 2008
Location: Somewhere between NE and SW Alberta
Posts: 1,216
Default Re: dana 03 front axle

C's are slightly different size and the spring plates are different sizes to as the springs on the ZJ are smaller.
04WJGuy is offline   Reply With Quote
Old 10-14-2011, 01:12 AM   #7
Junior Member
Thread Starter

Join Date: Jun 2011
Location: bc
Posts: 6
Default Re: dana 03 front axle

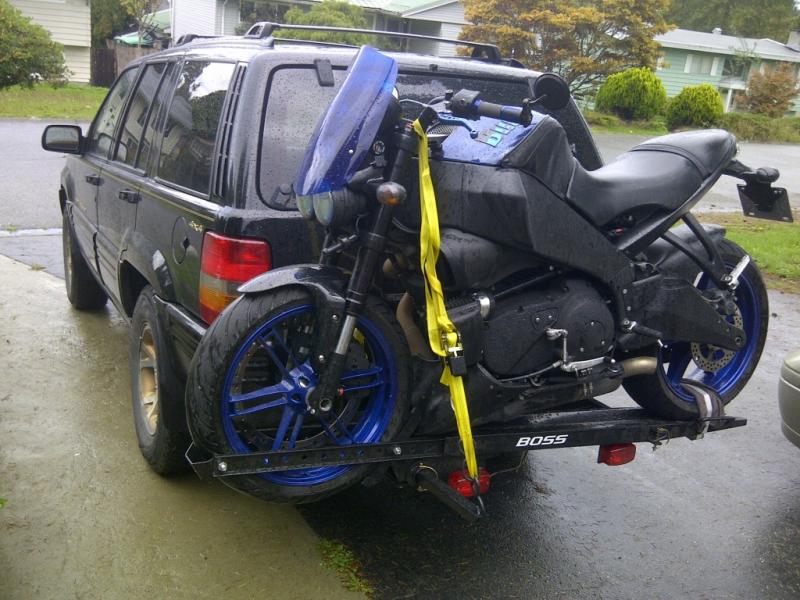

thank you for your help , finally took the zj into the shop . diff was fine ..... parts changed are . right hub , front brakes and rotors , 4 shocks all around new hitch with boss ramp carrier and rear airbags to do this .....
Attached Thumbnails
dana 03 front axle-surrey-20111011-00011.jpg
bcbueller is offline   Reply With Quote
