Lift Install - Page 2 - Jeeps Canada - Jeep Forums
Canadas Jeep Forum


Jeep Grand Cherokee Forum Forum for all ZJ (1993 - 1998), WJ (1999-2004) and WK (Since 05) Grand Cherokee owners.

Reply



Thread Tools Search this Thread
Old 08-13-2010, 02:20 AM   #11
Junior Member
Thread Starter

Join Date: Jul 2010
Location: BC
Posts: 11
Default Re: Lift Install

I am most scared of getting death wobble
cykawtik is offline   Reply With Quote
Old 08-13-2010, 03:38 AM   #12
Senior Member

04WJGuy's Avatar

Join Date: Nov 2008
Location: Somewhere between NE and SW Alberta
Posts: 1,216
Default Re: Lift Install

My list wasn't for a hardcore offroader, it's for maintaining close to stock handling on a daily driver with a short arm lift. I'll break it down a bit for you.

1. Adj. front disconnects- The front swaybar should idealy be at 30* (25* is acceptable) after the lift, you may or may not be able to do this with fixed length links.

2. Extended rear links- included with the kit.

3. Adj. track bar- When you lift the Jeep the front axle is going to move to the passenger side. With the fixed length track bar it may not have enough length to bring it back in line with the rear axle.

4. A-Arm spacer- Already discussed

5. HD rear swaybar- When you get the Jeep up in the air the backend is going to wiggle around on you because the factory sway bar will be to small to take the force of cornering properly.

6. HD front swaybar- Can be skipped for a DD.

7. Extended bumpstops- will keep the larger tire from moving up high enough to tear out the wheel well liner or accidently tearing the fender off the Jeep.

8. Front coil holders- Can be skipped on a DD

9. Extended shocks- These are a must.

10. Rims with 4.5" of backspacing or spacers assuming that you will be running bigger tires.- You never said what size tires you were going to run after the lift but as you take the Jeep up the wheels need to be moved out to deal with the new height and width of the larger tires so that they don't interfere with the suspension components.

11. HD steering stabilizer- This is a must on any lifted Jeep, the stock stabilizer won't last long with the extra strain on it.

I'm not trying to steer you away from IRO or the kit, with 2 WJ's, 2 ZJ's and a TJ I've spent many paychecks on their stuff. I'm a huge fan and would reccomend them to anyone. If you look at all the stuff listed as extras on the page that shows the lift your looking at you'll see everything I've listed except for the a-arm spacer and I'm only reccomending it from my own experience.

Last edited by 04WJGuy; 08-13-2010 at 03:54 AM.
04WJGuy is offline   Reply With Quote
Old 08-13-2010, 02:17 PM   #13
Junior Member
Thread Starter

Join Date: Jul 2010
Location: BC
Posts: 11
Default Re: Lift Install

I'll be running 2007 wrangler wheels and 32" tires
appreciate all your help
cykawtik is offline   Reply With Quote
Old 08-13-2010, 03:54 PM   #14
Junior Member
Thread Starter

Join Date: Jul 2010
Location: BC
Posts: 11
Default Re: Lift Install

What is your opinion on this kit:

http://www.zoneoffroad.ca/default.cf...dCategoryID=39
cykawtik is offline   Reply With Quote
Old 08-14-2010, 11:57 PM   #15
Senior Member

04WJGuy's Avatar

Join Date: Nov 2008
Location: Somewhere between NE and SW Alberta
Posts: 1,216
Default Re: Lift Install

I don't have any personal experience with Zone stuff but have heard good things. There is one thing with the kit that isn't good though.
When they put lower control arms only in the kit they do this so that you have to come back and get uppers afterwards. Afterwards usually means after you've broken something. When you just put lowers on the upper arms hold the axle in place and the longer lower ones rotate the differential downwards (not good) which puts a lot of strain on your driveshaft and transfer case.
The other thing is minor, most of the time you won't need the transfercase drop until your at 5+", but saying that every jeep is slightly different.

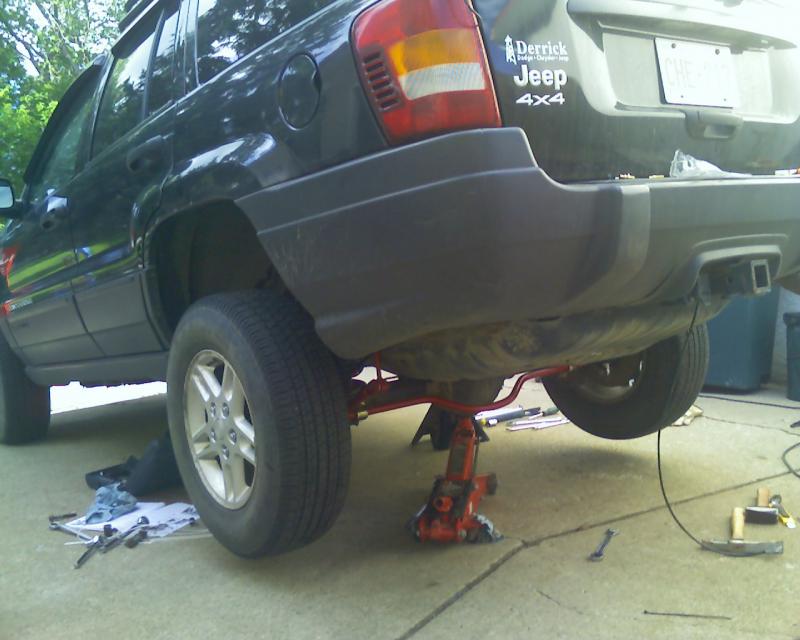

I'm in Edmonton right now doing a 3" lift on a buddy's WJ I'll post up so better pics when I get home in a couple days. But to give you an idea of what a 3" lift looks like just imagine the tire being 1" higher up than it is right now.

This is parts from IRO, KOR, and Mopar with HD swaybars F/R and air overloads in the back.
Attached Thumbnails
Lift Install-3-inch-lift.jpg
04WJGuy is offline   Reply With Quote
Old 08-15-2010, 12:46 AM   #16
Senior Member

04WJGuy's Avatar

Join Date: Nov 2008
Location: Somewhere between NE and SW Alberta
Posts: 1,216
Default Re: Lift Install

Forgot to mention about your choice of Rims/ tires.
Are you going to be running 32x10.5 or 265/75-16? Or are you looking at something narrower? A 32 is slightly wider than the 265 so you would need a bit more backspacing for an actual 32 plus a bit more trimming to keep it from rubbing.
04WJGuy is offline   Reply With Quote
Old 08-15-2010, 02:32 PM   #17
Junior Member
Thread Starter

Join Date: Jul 2010
Location: BC
Posts: 11
Default Re: Lift Install

tire size is 255/70/18
cykawtik is offline   Reply With Quote
Old 08-17-2010, 12:46 AM   #18
Senior Member

04WJGuy's Avatar

Join Date: Nov 2008
Location: Somewhere between NE and SW Alberta
Posts: 1,216
Default Re: Lift Install

They will fit but your going to be doing some trimming on the bumper, they will rub.
04WJGuy is offline   Reply With Quote
