Default Just put on...having trouble with...

Just put on my Rugged ridge light cages yesterday, had trouble getting the blinkers out on the side fender, need to still do those...any suggestions on removing those little suckers?
Drove around without the hard top off as well, freaking awesome!!

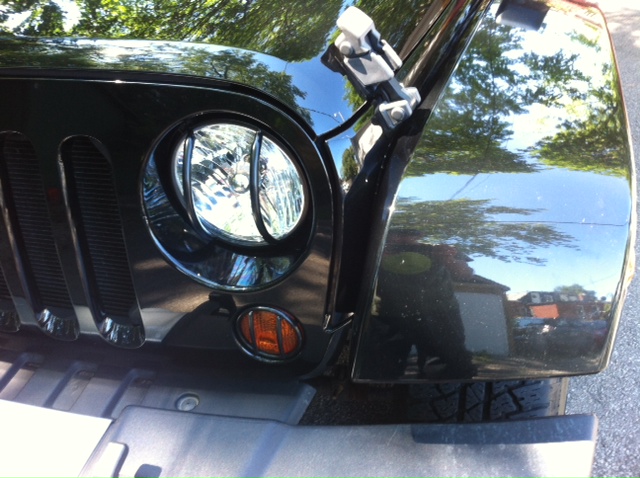

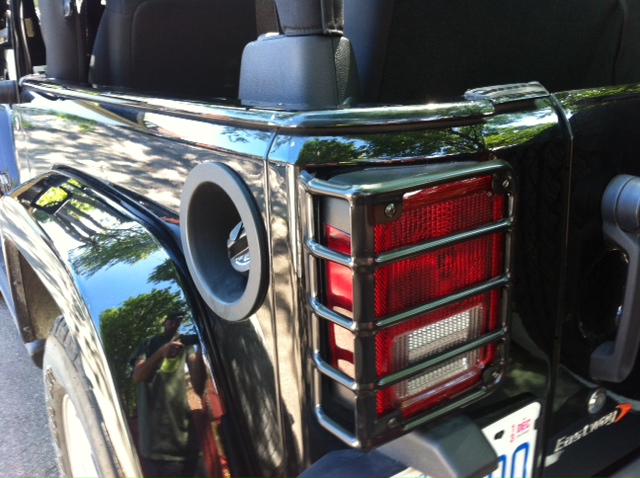

Here are the pics...
Attached Thumbnails Just put on...having trouble with...-light-gaurds-front.jpg   Just put on...having trouble with...-light-gaurds-rear.jpg
Kearney is offline
Old 07-31-2013, 12:28 PM
  #2
Member

Silver Billet's Avatar

Join Date: Apr 2013
Location: In The Garage
Posts: 50
Default Re: Just put on...having trouble with...

The front's are pretty straight forward, just push on the tabs to release the top of the signal, they will come out through the front of the Grill.
You will need a Small tool, to push on the release tabs of plastic rivets, I used 1/8 drill bit, Maybe a length of coat hanger will also work. When unlocked then the rivets can be pulled from the plastic fenders, you can fit your hand between the fender liner and plastic fender,feel for the locking tabs, release them and the side signal is removed from between the liner and the plastic fender. Be careful installing the side markers and front signals the plastic seems brittle with the RR lights.
Post up a pic of yours, I think they look good with the Billet silver!
Good Luck!
